Desktop Micro Electronic Compression Tearing Tensile Strength Tester Tension Testing Machine

Name: Desktop Micro Electronic Compression Tearing Tensile Strength Tester Tension Testing Machine
Brand: Gaoxin
Price: 1 USD

Desktop Micro Electronic Compression Tearing Tensile Strength Tester Tension Testing Machine Manufactures

Brand Name : Gaoxin

Model Number : GX-8005

Certification : ISO 9001:2008

Place of Origin : China

MOQ : 1set

Price : negotiation

Payment Terms : FOB Shenzhen, L/C, T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 15 working days

Packaging Details : Non-fumigation wooden box

Function : Paper Tensile Strength Tester

Type : Desk type

Applicable industry : leather, paper

Max. load : 50kg

Tests : tensile test, bending test, compression test

Power : 220V,5A

Control : Electric

Valid stroke : 350mm

Motor : AC motor

Speed range : 25~500mm/min

Weight : 35 Kg

Contact Now

Desktop Micro Electronic Compression Tearing Tensile Strength Tester Tension Testing Machine

1. Product Description

paper tensile strength tester is used to test tensile properties of paper strip.

the tensile properties of paper and board is determined by four main factors: tensile strength, breaking length, elongation ratio, tensile index, stress energy absorption, and absorption index.

Tensile strength and strain at rupture are determined as values characteristic of paper strength (ISO 1924, 1992). The tensile strengthtogether with the sample width gives the tensile strength per unit width, measured in N m–1. Together with the sample thickness the tensile strength can be expressed in kPa. The tensile index results from tensile strength per unit width (expressed in N m–1 divided by grammage).

In paper technology, the breaking length is also of some importance as a calcu¬lated value. It is the length of a freely suspended paper strip of any constant width and thickness that just breaks at the point of suspension due to its own weight.

2. Applicable industry

Paper and paper board, or other industries

3. Specifications

Capacity	2kg, 5kg, 20kg, 50kg
Resolution	1/10000
Accuracy	< ±1%
Test speed	25~300mm/min (adjustable)
Test stroke	350mm(can customize)
Stop mode	specimen failure down, upper and lower limits down
Motor	AC motor
Dimension	50×48×132cm
Weight	35kg(appr)
Power supply	AC 220V 50Hz (or specified)

Desktop Micro Electronic Compression Tearing Tensile Strength Tester Tension Testing Machine

Product Tags:

tensile test equipment

universal testing machine

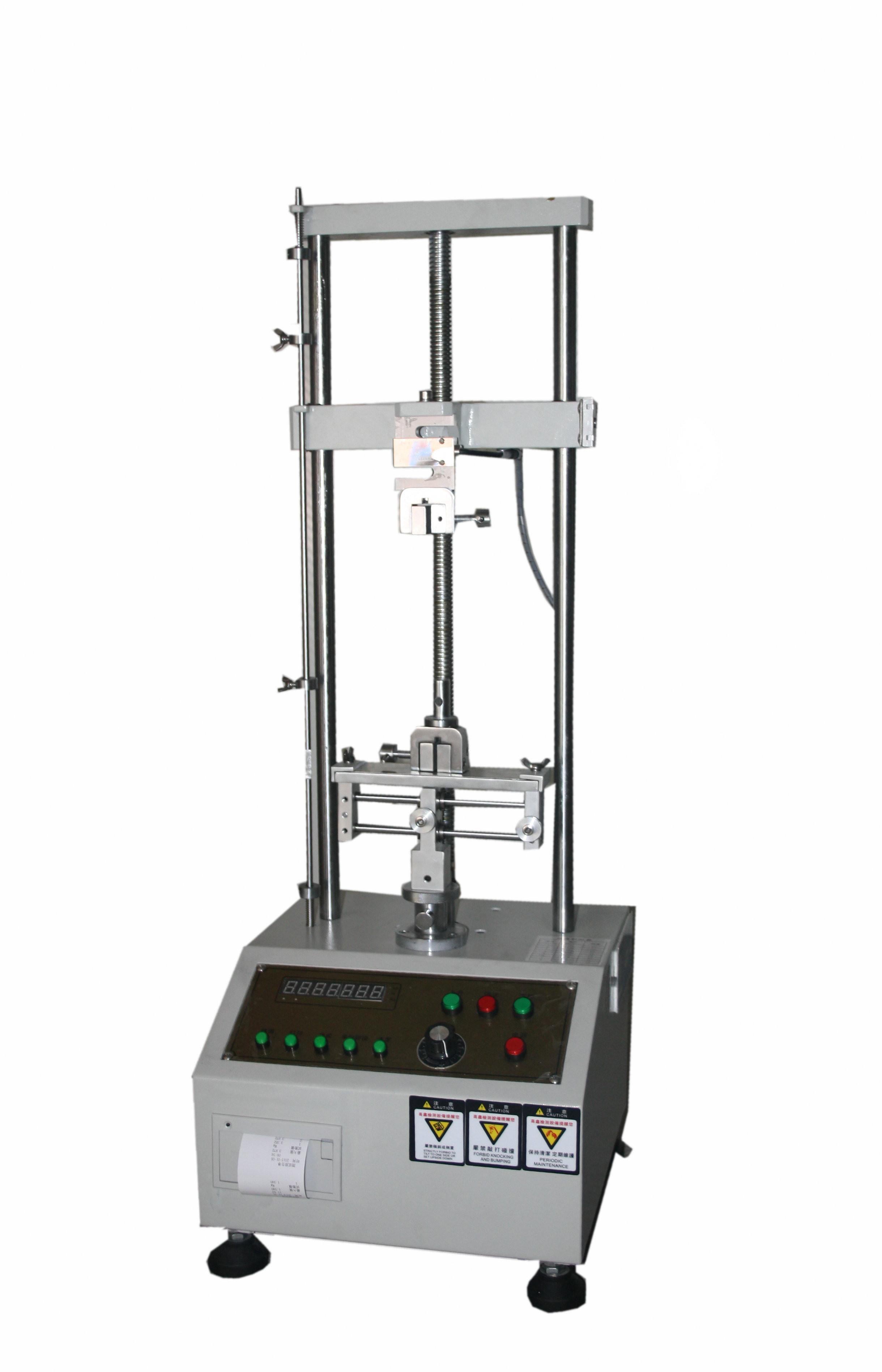

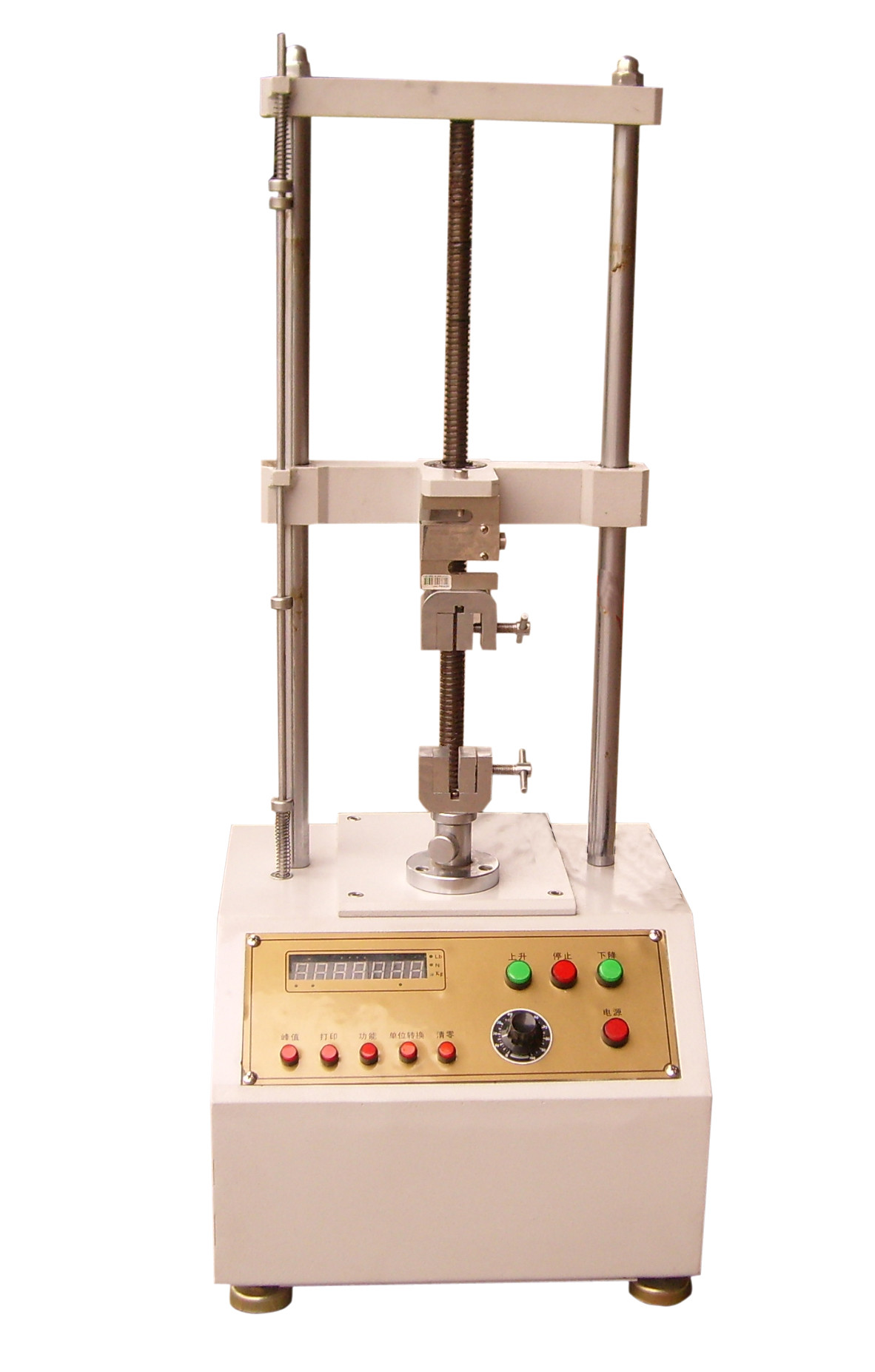

Desktop Micro Electronic Compression Tearing Tensile Strength Tester Tension Testing Machine Images
